If you prefer higher heating temperatures from your registers in winter or just want to continue using an existing furnace, this indoor unit may be what you need. The Infinity® GZA geothermal split system heat pump combines superior performance with the smart, powerful and intuitive Infinity® System Control. This system utilizes your new or existing furnace or fan coil's blower motor to move air and offers the efficiency and comfort benefits of a two-stage compressor, all tied together with the versatile programming, energy tracking and available wireless/remote operation of the Infinity® System Control.

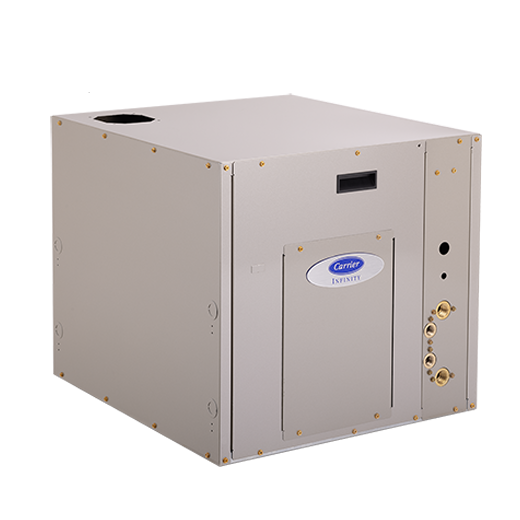

INFINITY® SPLIT SYSTEM GEOTHERMAL HEAT PUMP
If you prefer higher heating temperatures from your registers in winter or just want to continue using an existing furnace, this indoor unit may be what you need. The Infinity® GZA geothermal split system heat pump combines superior performance with the smart, powerful and intuitive Infinity® System Control. This system utilizes your new or existing furnace or fan coil’s blower motor to move air and offers the efficiency and comfort benefits of a two-stage compressor, all tied together with the versatile programming, energy tracking and available wireless/remote operation of the Infinity® System Control.
| Efficiency | Quiet Level | Comfort Features |
|---|---|---|
STANDARD FEATURES
- Compatible with many furnaces or fan coils
- Manage your heating and cooling costs with high-efficiency geothermal (efficiency is unit size dependent)
- Two-stage scroll compressor for ultimate comfort and performance
- Optimal humidity and temperature control when managed by the Infinity System Control
- Insulated cabinet, double-isolation compressor mounting, and compressor blanket for quiet operation
- Large operating temperature range with exceptional cold weather performance
- Microprocessor control for precision operation
- Lower global warming potential Puron Advance™ refrigerant
- Built in A2L dissipation fan system
- Smart startup add-on for smoother operation
- Passive dehumidification standard
- Active Puron Advance™ A2l dissipation sensor factory installed
- Corrosion-resistant coil protection for long life
- 10-year parts and 5-year labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
1 To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
EFFICIENCY
- Closed loop cooling: Up to 28.8 EER
- Closed loop heating: Up to 4.6 COP
- Open loop cooling: Up to 29.1 EER
- Open loop heating Up to 5.2 COP
- ENERGY STAR® qualified in all sizes
PERFORMANCE
- Summer dehumidification is compressor enhanced
- Excellent cold weather performance
- Hybrid Heat® system compatible
TECHNOLOGY
- Two-stage scroll compressor
- Sound enhancements: Fully insulated cabinet, compressor blanket and double-isolation compressor mounting system
- Microprocessor control board
- Recommended control: Infinity® System Control
CAPACITIES
- 2-6 ton cooling
- 24,000-72,000 Btu/h heating
REQUIREMENTS
- 208/230 V
AESTHETICS
- Heavy-duty, galvanized steel cabinet
- Baked on urethane base coat and polyester top coat paint in taupe metallic
1 Proper sizing and installation of equipment is critical to achieve optimal performance. Split system heat pumps must be matched with appropriate coil components to meet ENERGY STAR criteria. The 6 ton size of this model must be matched with a furnace/evaporator coil combination to qualify.
