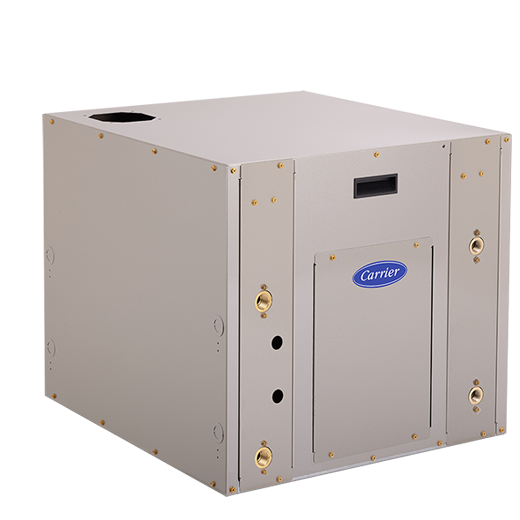

Performance™ Water-to-Water Geothermal Heat Pump

This geothermal heat pump delivers the comfort with hot water for your radiant or hydronic system. It can also help cut your costs for domestic hot water production.

If your needs extend to cooling, in some cases, this model’s innovative design can also work in conjunction with a hydronic air handler to utilize chilled water to produce cool air for your home in the summertime. This unit is compatible with the Carrier Smart Thermostat.

  • Heats
  • Cools
  • ENERGY STAR®
  • Tax Credit
Efficiency Quiet Level Comfort Features

This geothermal heat pump delivers the comfort with hot water for your radiant or hydronic system. It can also help cut your costs for domestic hot water production.

If your needs extend to cooling, in some cases, this model's innovative design can also work in conjunction with a hydronic air handler to utilize chilled water to produce cool air for your home in the summertime. This unit is compatible with the Carrier Smart Thermostat.

STANDARD FEATURES

  • Manage your utility costs with high-efficiency geothermal (efficiency is unit size dependent)
  • Compatible with many furnaces or fan coils
  • Two-stage compressor for ultimate comfort and performance
  • Optimal humidity and temperature control when managed by the Infinity System Control
  • Insulated cabinet, compressor blanket, and double-isolation compressor mounting for quiet operation
  • Large operating temperature range for exceptional cold weather performance
  • Microprocessor control for precision operation
  • Smart startup add-on for smoother operation
  • Passive dehumidification standard
  • Lower global warming potential Puron Advance™ refrigerant
  • Built in A2L dissipation fan system
  • Active Puron Advance™ A2l dissipation sensor factory installed
  • Corrosion-resistant coil protection for long life
  • 10-year parts and 5-year labor limited warranty1

OPTIONAL FEATURES

  • Supplemental, domestic hot water generation

1 To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.

EFFICIENCY

  • Closed loop cooling: Up to 28.8 EER
  • Closed loop heating: Up to 4.6 COP
  • Open loop cooling: Up to 29.1 EER
  • Open loop heating Up to 5.2 COP
  • ENERGY STAR® qualified in all sizes

PERFORMANCE

  • Summer dehumidification is compressor enhanced
  • Excellent cold weather performance
  • Hybrid Heat® system compatible

TECHNOLOGY

  • Two-stage scroll compressor
  • Sound enhancements: Fully insulated cabinet, compressor blanket and double-isolation compressor mounting system
  • Microprocessor control board
  • Recommended control: Infinity® System Control

CAPACITIES

  • 2-6 ton cooling
  • 24,000-72,000 Btu/h heating

REQUIREMENTS

  • 208/230 V

AESTHETICS

  • Heavy-duty, galvanized steel cabinet
  • Baked on urethane base coat and polyester top coat paint in taupe metallic

1 Proper sizing and installation of equipment is critical to achieve optimal performance. Split system heat pumps must be matched with appropriate coil components to meet ENERGY STAR criteria. The 6 ton size of this model must be matched with a furnace/evaporator coil combination to qualify.
