This ComfortTM series water-to-air heat pump offers exceptional quality and year-round operation at a price you can get comfortable with. You can also enjoy optional supplemental hot water generation to save money on monthly water heating. A multi-speed blower motor, corrosion-resistant coil, microprocessor control and quiet operation make this a great choice. This unit is compatible with the Carrier Smart Thermostat.

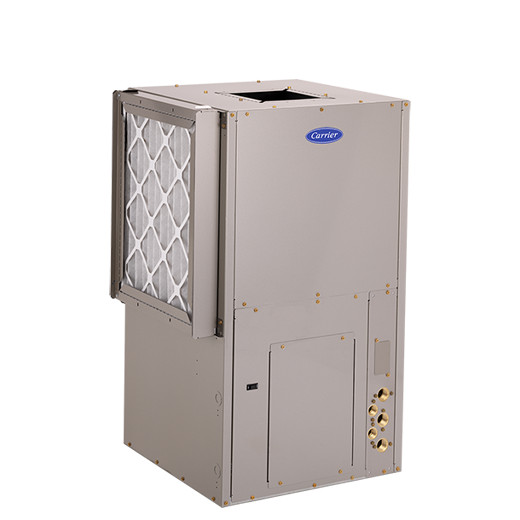

COMFORT™ GEOTHERMAL HEAT PUMP
This ComfortTM series water-to-air heat pump offers exceptional quality and year-round operation at a price you can get comfortable with. You can also enjoy optional supplemental hot water generation to save money on monthly water heating. A multi-speed blower motor, corrosion-resistant coil, microprocessor control and quiet operation make this a great choice. This unit is compatible with the Carrier Smart Thermostat.
| Efficiency | Quiet Level | Comfort Features |
|---|---|---|
STANDARD FEATURES
- Two-stage compressor for reliable performance
- Multi-speed blower motor for efficient performance
- Excellent dehumidification and temperature control
- Insulated cabinet, sound blanket, and double-isolation compressor mounting for quiet operation
- Large operating temperature range with exceptional cold weather performance
- Corrosion-resistant air coil for long life
- Corrosion-resistant drain pan
- 2" MERV 8 filtration
- Passive dehumidification standard
- Filter cabinet built-in for easy filter changes
- Lower global warming potential Puron Advance™ refrigerant
- Active Puron Advance™A2l dissipation system factory installed
- Compatible with Carrier Smart Thermostat
- 10-year parts and 5-year labor limited warranty1
OPTIONAL FEATURES
- Supplemental, domestic hot water generation
- Internally-mounted auxiliary heat available (except side discharge models)
- Field-installed, low draw, smooth start device
1 To the original owner, when installed in a residence, a 10-year parts and 5-year labor limited warranty upon timely registration of equipment. Warranty period is 5 years on parts and labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts/5-year labor limited warranty. See warranty certificate for details.
EFFICIENCY
- Closed loop cooling: Up to 24.0 EER
- Closed loop heating: Up to 4.3 COP
- Open loop cooling: Up to 28.1 EER
- Open loop heating Up to 5.2 COP
- ENERGY STAR® qualified in all sizes
PERFORMANCE
- Excellent cold weather performance
TECHNOLOGY
- High-efficiency, multi-speed blower motor
- Compressor: single-stage rotary (1.5 ton); two-stage scroll (2-5 ton)
- Sound enhancements: Fully insulated cabinet and double-isolation compressor mounting system
- Microprocessor control board
- Recommended control: Performance™ Edge® relative humidity thermostat
SIZES
- 1.5-5 ton cooling
- 18,000-60,000 Btu/h heating
INSTALLATION
- Vertical upflow
- Horizontal
REQUIREMENTS
- 208/230 V
AESTHETICS
- Heavy-duty, galvanized steel cabinet
- Baked on urethane base coat and polyester top coat paint in taupe metallic
