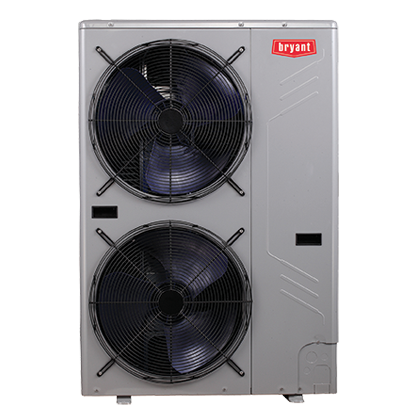

Single-phase Heat Pump Outdoor Unit
Product Features
- Up to 18.6 SEER cooling efficiency
- Up to 10.0 HSPF heating efficiency
- Available in 3, 4 & 5-ton capacity range
- 208/230V-1-60 power supply
- Ability to connect up to 9 multiple style indoor units on a 5 ton system
- 2-pipe heat pump system
- High performance outdoor unit with Inverter-driven scroll compressor
- Cooling Operating Range: 5° F to 118° F
- Heating Operating Range: 5° F to 64° F
- Connected capacity up to 130%
- Quiet outdoor operation, as low as 58.7 dB(A)
Reliability Features
- All equipment wiring complies with NEC requirements
- Unit constructed in accordance with ETL requirements
- Finned tube heat exchanger
- Suitable for R-410a refrigerant
Installation Features
- Factory provided controls
- Single point electric connections
Warranty
Effective 8/1/24, the warranty for our VRF equipment will include an opportunity for a 10-year parts and compressor limited warranty. If not registered within 90 days, the warranty will be a 5-year parts and 7-year compressor limited warranty.1 See warranty certificate for details.
1Except for residential applications in California and Quebec and other jurisdictions that prohibit warranty benefits conditioned on registration.
