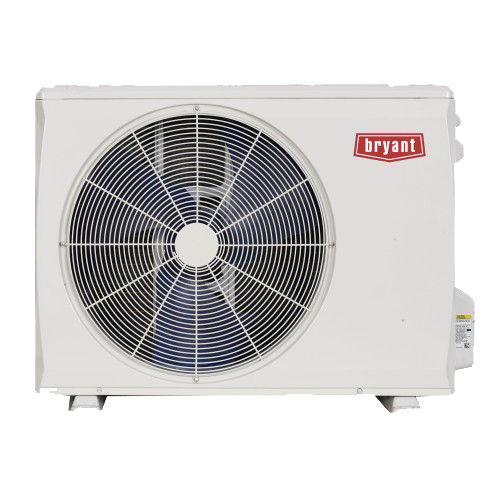

Preferred™ Heat Pump with Basepan Heater

Preferred™ Heat Pump with Basepan Heater

Efficiency Quiet Level Comfort Features
  • 100% Heating Capacity at 5° F (-15° C)*
  • Inverter Compressor
  • Up to 28.1 SEER2 cooling efficiency
  • Up to 12.4 HSPF2 heating efficiency
  • Select sizes are ENERGY STAR® certified based on indoor unit pairing
  • Available in 115V and 208/230V
  • Sizes ranging from 06 to 36
  • Built-in basepan heater
  • Piping length 82-213 ft. depending on unit capacity and system configuration
  • Refrigerant leakage detection
  • Condenser high-temperature protection
  • Extremely quiet outdoor sound operation, as low as 54 decibels1
  • 46° F heating mode (heating setback)
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
  • Compatible units: 619PB High Wall, 40MBCQ Cassette, 40MBDQ Ducted, 40MBFQ Floor Console

1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
* Sizes 6-24 (208/230V). Dependent upon indoor unit combination.

EFFICIENCY MANAGEMENT

Up to 28.1 SEER2/up to 16.2 EER2/up to 12.4 HSPF2
ENERGY STAR®  Select sizes are ENERGY STAR ® certified based on indoor unit pairing

COMFORT MANAGEMENT

Cooling Operating Range -23° F up to 122° F (-25° C up to 50° C)
Heating Operating Range -22° F up to 86° F (-30° C up to 30° C)
Extremely quiet Levels as low as 54 dB(A)1

TECHNOLOGY

Compressor Inverter
System Capacity 0.5 - 3 tons
Voltage 115V (Sizes 12), 208/230V (Sizes 6-36)

AESTHETICS

Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 213 ft.

MODELS

Full Model Numbers 38MARBQ**AA1, 38MARBQ**AA3

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.


1 Quietest size within each model group during most common cooling operating condition
