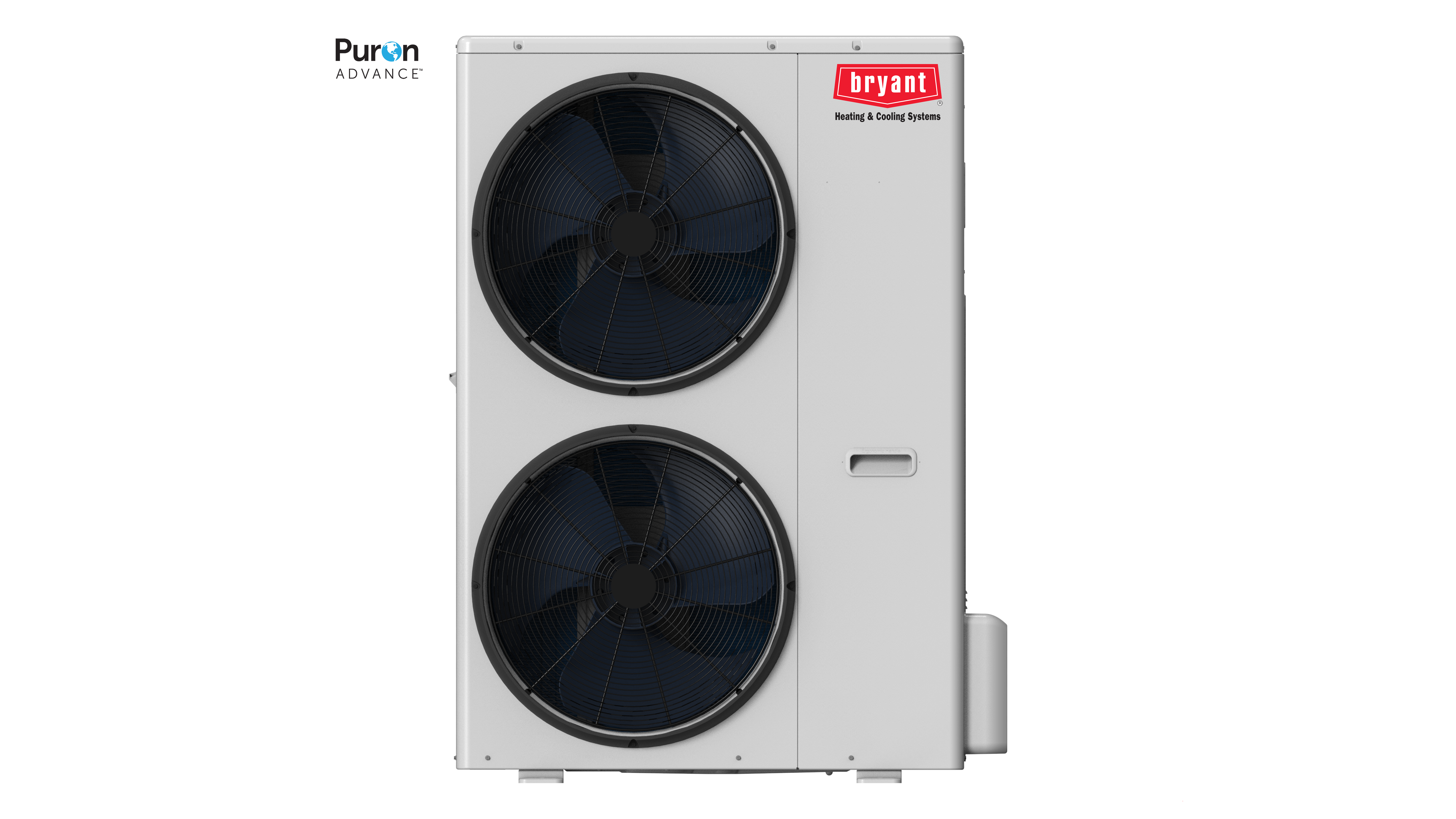

Opti-V Heat Pump
Product Features
- SEER2 up to 20, EER2 up to 13.3, and HSPF2 up to 10.1
- Available in 3-, 4-, and 5-ton sizes
- Independently control temperatures in up to nine zones with multiple indoor units—ideal for both residential and light commercial spaces.
- 5-ton heat pump operates at sounds as low as 60 dB(A)
- Enjoy consistent temperature and humidity control with an Opti-V heat pump powered by inverter compressor technology
- Keep your Opti-V system running longer with optimized compressor start-up technology
- Provides reliable cooling in temperatures as high as 125⁰ F and delivers heating in temperatures as low as -22⁰ F
- Maximum connected capacity is up to 130%
Reliability Features
- All equipment wiring complies with NEC requirements
- Unit constructed in accordance with ETL requirements
- Unit performance is in accordance with AHRI 1230 standards
- Suitable for Puron Advance™ refrigerant
Installation Features
- Ideal for zero-lot line applications, requiring only 12” of back side clearance
- 5-ton Opti-V heat pump 15.7” deep
- Heat pumps have a maximum line length of 984’
- Integrated controls design allows for complete system control
- System can be auto addressed
Warranty
Effective 8/1/24, the warranty for our Opti-V equipment will include an opportunity for a 10-year parts and compressor limited warranty. If not registered within 90 days, the warranty will be a 5-year parts and 7-year compressor limited warranty.1 See warranty certificate for details.
1Except for residential applications in California and Quebec and other jurisdictions that prohibit warranty benefits conditioned on registration.
