The Infinity return air purifier is a whole-home solution that can be added to your heating and cooling system. It uses Captures & Kills technology to inactivate 99% of select airborne pathogens trapped by the MERV 15 filter, including coronavirus, bacteria and other pathogens.1

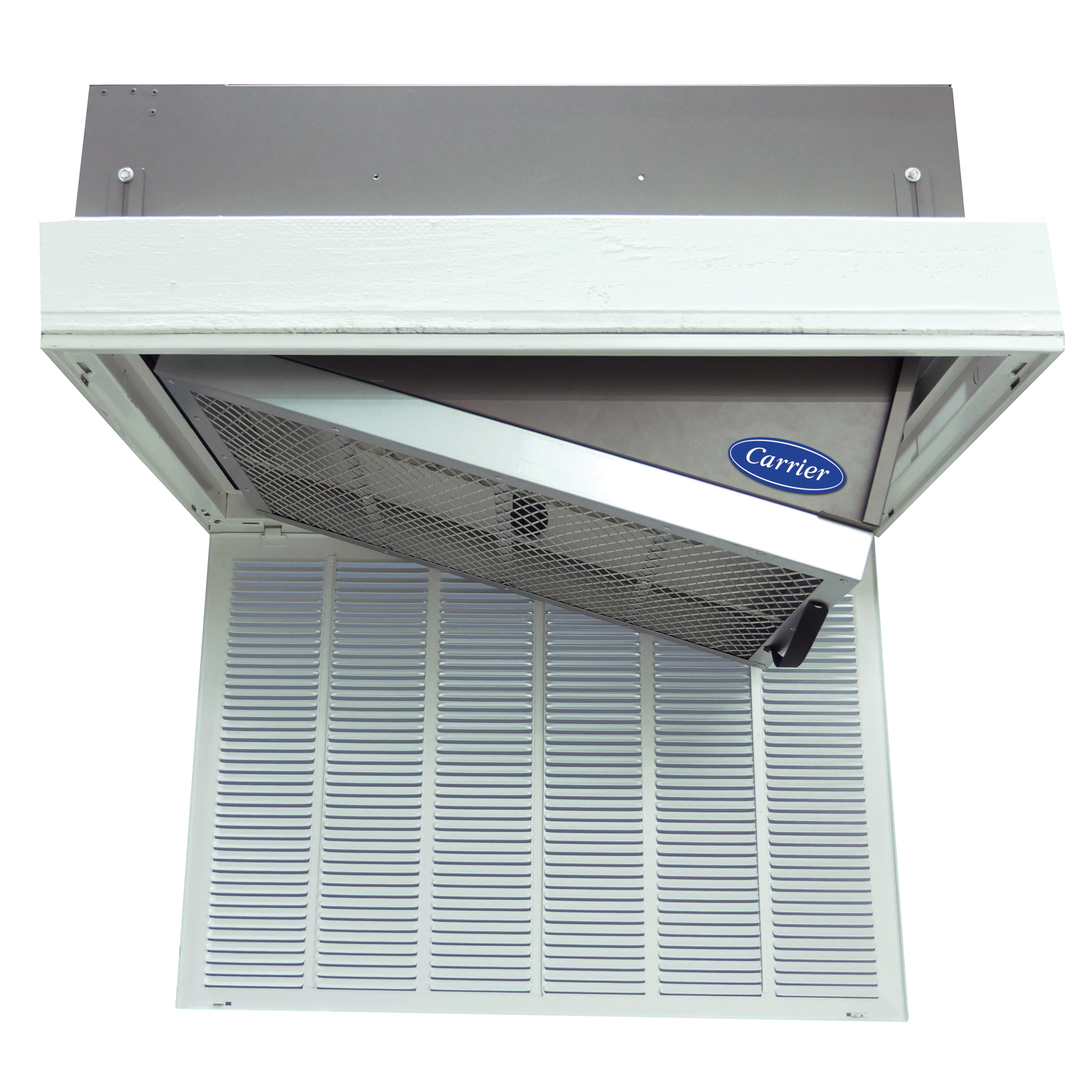

Infinity® Return Air Purifier
The Infinity return air purifier is a whole-home solution that can be added to your heating and cooling system. It uses Captures & Kills technology to inactivate 99% of select airborne pathogens trapped by the MERV 15 filter, including coronavirus, bacteria and other pathogens.1
STANDARD FEATURES
- Whole home air purification system
- Long-life MERV 15 filter
- Patented Captures & Kills™ technology
- Captures up to 95% of particles1
- Kills or inactivates up to 99% of germs and viruses2
- Proven effective against 3 common pathogens:
- Human influenza
- Common cold surrogate
- Streptococcus pyogenes
- Protects heating and cooling equipment by not producing significant pressure drop
- Can be placed in line with nearly any ductwork system
- Narrow cabinet design for greater installation flexibility
- Easy to replace, long-lasting filters
- 10-year parts limited warranty3
1
Based on third-party testing (2012) showing 95% of particles size 1.0 to 3.0 microns captured.
2
Based on third-party testing (2012, 2007) showing >99% kill rate for common cold surrogate, Streptococcus pyogenes and human influenza. Not tested for the novel coronavirus (SARS-CoV-2) that causes COVID-19.
3
To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
PERFORMANCE
- Filter efficiency: MERV 15
- Capture rate: Up to 95% of particles1
- Germicidal rate: Up to 99%2
- Low airflow resistance
TECHNOLOGY
- Patented Captures & Kills™ technology
- Recommended control: Infinity System control
SIZES
- Furnace/fan coil sizes:
1620: 18.5"H x 7.25"W x 24.75"D
1625: 18.5"H x 7.25"W x 27.75"D
2020: 22.25"H x 7.25"W x 24.75"D
2025 22.25"H x 7.25"W x 27.75"D
2420: 25.75"H x 7.25"W x 24.75"D
INSTALLATION
- Flexible installation: upflow, downflow or horizontal flow furnaces
REQUIREMENTS
- 120v or 230v
AESTHETICS
- Heavy-gauge steel cabinet pre-painted in taupe metallic
